Modular Full-weighing stabilized soil Mixing station - modular cement concrete mixing plant,Concrete Mixing Plant,Concrete Batching Mixers

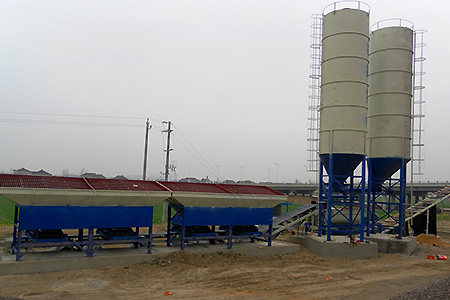

Modular Full-weighing stabilized soil Mixing station

Module stabilized soil mixing plant material has a strong adaptability, grading variety, good reliability, easy operation, compact structure, reasonable layout. Widely used in highway, railway, municipal engineering, airport construction and other applications require subbase materials.

More detailed product information to please download the PDF
PDF Download>>

Introduction:

Performance:

1. easily disassembled and assembled, save time;
2. operate easily, maintain conveniently;
3. higher capacity and efficiency;
4. matching ratio accurate, mixing uniformly; weighing automatic;

Specification:

Model	MWCB300	MWCB400	MWCB500	MWCB600
Type	twin-shaft compulsory mixer
Capacity (t/h)	300	400	500	600
The aggregate silo volume m3	3×12	4×12	4×12	4×15
Max. aggregate size(mm)	≤60
Accuracy of batching (%)	Aggregate ±2、cement ±1、water ±1
Feeding height (m)	3.9	4.1	4.1	4.5
Discharging height (m)	3.5	3.5	3.5	3.8
The speed of mixer	632r/min	632r/min	632r/min	632r/min
Total power (kw)	95	105	120	140
1. Total power does not include the screw conveyor. 2. The quantity and volume of hopper can be designed according to customers’ request; 3. Any change of technical data should not be advised additionally;
