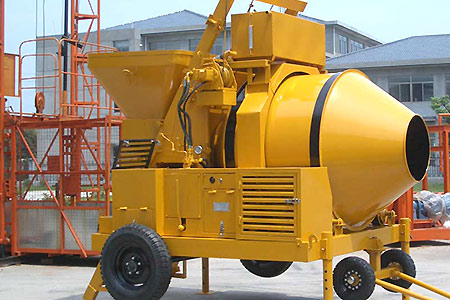

JZD Diesel Driven Concrete Mixer

JZD series diesel concrete mixer is driven by diesel engine.  JZD series diesel engine concrete mixer can be drawn by wheels, so it is easy to move. It is controlled by electric control box, which makes the operation very easy.


More detailed product information to please download the PDF
  PDF Download>>

Introduction:

JZD series diesel concrete mixer is driven by diesel engine. There are two feeding modes: climbing bucket feeding and dump hopper feeding. JZD series diesel engine concrete mixer can be drawn by wheels, so it is easy to move. It is controlled by electric control box, which makes the operation very easy.

Performance:

1.  Diesel engine, especially suitable for the areas thatwithout electricity.
2.  Can be easily moved between different construction sites.
3.  Easy operation; stable performance; Low energy consumption.
4.  Reasonable structure, higher reliability, mixing evenly with high productivity.

Specification:

Model JZR350DW JZR350DH JZR500DH JZR500DS
Discharging Capacity(L) 350 350 500 500
Charging Capacity(L) 560 560 800 800
Productivity(m3/h) 10-14 10-14 20-22 20-22
Maximum Size
of Aggregate(mm)		 60 60 80 80
Hopper Lifting Wire rope tipping Hydraulic system Hydraulic system Hydraulic system
Diesel Engine Power(kw) 9.7 13.2 13.2 16.2
Power of Water Pump(kw) 0.75 0.75 2.2-3 2.2-3
Accuracy of Water Supply Error≤2﹪ Error≤2﹪ Error≤2﹪ Error≤2﹪
Dimensions in
Container (mm)		 2750×2200×2400 2300×1900×2500 2300×3300×2500 2300×3300×2500
Overall Weight (kg) 1350 1400 2300 2200
